| Products |
|

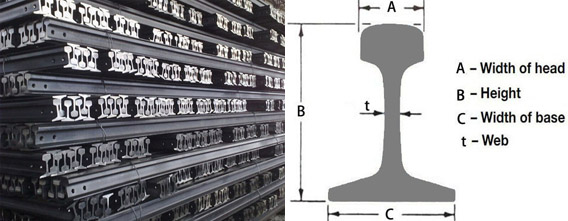

| Product Image: |  | | Product Name: | Chinese Standard Light Rails |
| LightRails GB11264-89 |
| SIZE |
DINENSION (mm) |
WEIGHT
(KG/M) |
Material |
Length |
| A |
B |
C |
t |
M/PCS |
| GB 6KG |
25.4 |
50.8 |
50.8 |
4.76 |
5.98 |
Q235/55Q |
6-12 |
| GB 9KG |
32.1 |
63.5 |
63.5 |
5.9 |
8.94 |
| GB 12KG |
38.1 |
69.85 |
69.85 |
7.54 |
12.2 |
| GB 15KG |
42.86 |
79.37 |
79.37 |
8.33 |
15.2 |
| GB 22KG |
50.8 |
93.66 |
93.66 |
10.72 |
22.3 |
| GB 30KG |
60.33 |
107.95 |
107.95 |
12.3 |
30.1 |
| Light Rails YB222-63 |
|
SIZE |
DIMENSION (mm) |
WEIGHT
(KG/M) |
Material |
Length |
| A |
B |
C |
t |
M/PCS |
| YB 8KG |
25 |
65 |
54 |
7 |
8.42 |
Q235/55Q |
6-12 |
| YB 18KG |
40 |
90 |
80 |
10 |
18.06 |
| YB 24KG |
51 |
107 |
92 |
10.9 |
24.46 | | | [Back] [Print] |
|
|
|
