Products
Product Image:American Standard Rails
Product Name:

American Standard Rails

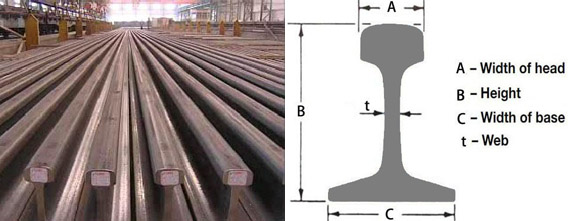

American Standard Rail (ASTMA1 AREMA)
SIZE DIMENSION (mm) WEIGHT
(KG/M)
Material Length
A B C t FT/PCS
ASCE25 38.1 69.85 69.85 7.54 12.4 700/900A/1100 20/30/33/40/60
ASCE30 42.86 79.38 79.38 8.33 14.88
ASCE40 47.62 88.9 88.9 9.92 19.84
ASCE60 60.32 107.95 107.95 12.3 29.76
ASCE75 62.71 122.24 122.24 13.49 37.2
ASCE85 65.09 131.76 131.76 14.29 42.17
90RA 65.09 142.88 130.18 14.29 44.65
115RE 69.06 168.28 139.7 15.88 56.9
136RE 74.61 185.74 152.4 17.46 67.41
175LBS 109.86 152.4 152.4 38.1 86.8
