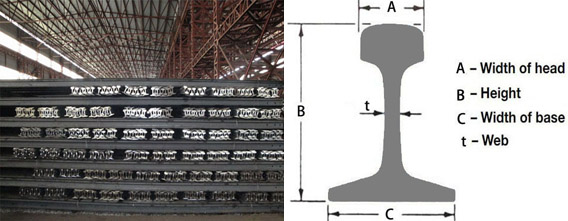

| Product Image: |  | | Product Name: | BS Standard Rail |
| BS11:1985 Standard Rails |
| SIZE |
DIMENSION (mm) |
WEIGHT
(KG/M) |
Material |
Length |
| A |
B |
C |
t |
FT/PCS |
| 50O |
52.39 |
100.01 |
100.01 |
10.32 |
24.833 |
700/900A |
20/30/33/40/60 |
| 60A |
57.15 |
114.3 |
109.54 |
11.11 |
30.618 |
| 60R |
57.15 |
114.3 |
109.54 |
11.11 |
29.822 |
| 70A |
60.32 |
123.82 |
111.12 |
12.3 |
34.807 |
| 75A |
61.91 |
128.59 |
114.3 |
12.7 |
37.455 |
| 75R |
61.91 |
128.59 |
122.24 |
13.1 |
37.041 |
| 80A |
63.5 |
133.35 |
117.47 |
13.1 |
39.761 |
| 80R |
63.5 |
133.35 |
127 |
13.49 |
39.674 |
| 90A |
66.67 |
142.88 |
127 |
13.89 |
45.099 |
| 100A |
69.85 |
152.4 |
133.35 |
15.08 |
50.182 |
| 113A |
69.85 |
158.75 |
139.7 |
20 |
56.398 | | | [Back] [Print] |
|
|
|
